60W Solar LED Street Light Motion Sensor 43Ah

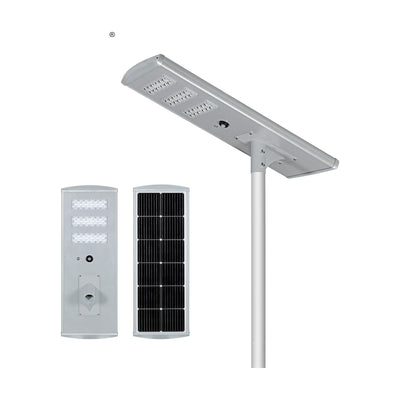

Smallest of the manufacturer's 0418 series, the 60W 0418A60-03 is an aluminium alloy solar street light listed for mounting at three to five metres, which puts it in range of driveways, gateways, yards and footpaths rather than open roads.

Forty-eight 3030 LEDs at 6000K give a rated 160 lm/W. Charging comes from a 6V 80W mono-crystalline panel into a LiFePO4 3.2V 43Ah battery, with a stated charging time of 6 to 8 hours and a discharging time of 30 to 36 hours from full, so the reserve is well ahead of a single night. Control is by motion sensor combined with light control, so the lamp wakes at dusk and lifts its output when someone approaches, which is how the battery is made to last. The head measures 811 x 407 x 209mm.

It is fitted at compound entrances, on staff and service paths, over parking bays, at store and workshop doors and along the inside of perimeter walls. The panel should be angled to open sky, with nothing overhanging it.

Specifications

• Rated power: 60W solar LED street light
• LED: 3030 LED, 48 pcs, 6000K
• Efficacy: 160 lm/W
• Solar panel: 6V 80W mono-crystalline
• Battery: LiFePO4 3.2V 43Ah
• Charging time: 6-8 hours
• Discharging time: 30-36 hours
• Control: motion sensor and light control
• Material: aluminium alloy
• Product size: 811 x 407 x 209mm
• Install height: 3-5 metres
• Warranty: manufacturer's stated warranty of 3 years
