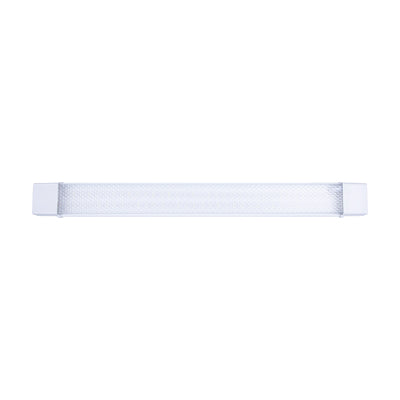

MAX LED Dust-proof Bracket M-PD120B-70 70W 4400lm

A 70W sealed batten on a 1200mm body, the M-PD120B-70 is the mid-power option in MAX's dust-proof bracket range. It gives a long, even line of light down an aisle or across a bay, and the sealed construction is what makes it appropriate for places where an open fluorescent-style fitting would clog up.

The housing is iron with a PS cover, closed against dust, water and mosquitoes, and designed to disperse heat well enough to hold brightness without colour shift over time. Output is 4400 lumens from SMD diodes at a 120 degree beam, colour rendering is rated at 80 or above, and the fitting carries 2KV surge protection, which is worth having on rural or industrial supplies. Rated life is quoted at 25,000 hours at an ambient of 45 degrees Celsius. It is produced in 3000K and 6500K with clear or diffuse surface treatment.

Typical installations are car wash bays, offices, malls, factories, godowns, corridors and covered walkways. Fitting is by marking out the position, screwing the buckles to the surface, and pressing the body into them.

Specifications

• Model: M-PD120B-70
• Power: 70W
• Luminous flux: 4400lm
• Voltage: AC220-240V 50/60Hz (operating range AC175-265V)
• CRI: 80 or above
• Beam angle: 120 degrees
• LED type: SMD
• Power factor: Greater than 0.5
• Surge: 2KV
• Life: 25,000 hours
• Material: Iron and PS
• Size: 1200 x 60 x 26mm
• Colour temperature: 3000K / 6500K
