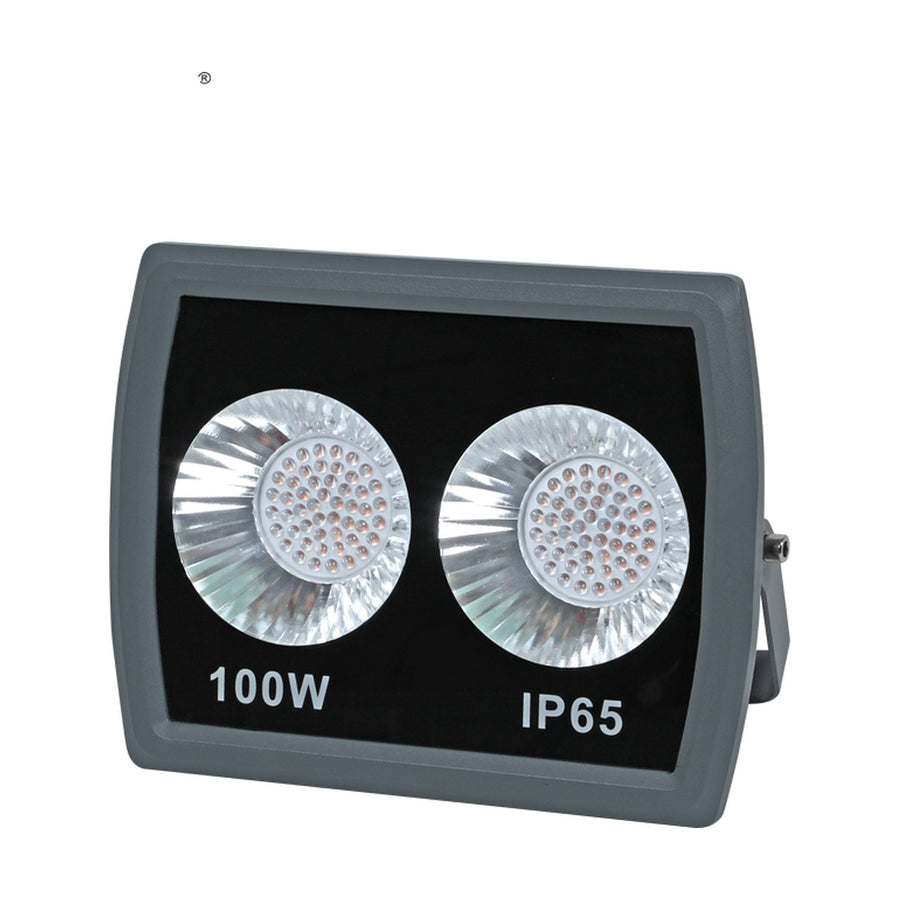

100W LED Flood Light IP65 3030 LED Aluminium

Stepping up from the 50W unit, the 5110B100-01 is a 100W mains LED flood light for forecourts, workshop yards and larger compounds running off an AC supply. Contractors use it where one fitting has to cover a whole parking area, and farms and schools take it for gate and walkway lighting.

One hundred 3030 LEDs give a rated efficacy of 160 lm/W, a colour rendering index above 70Ra and a stated LED life span of 50,000 hours. The 3000K-6000K colour temperature range lets the same model serve both amenity and task lighting. Die-cast aluminium forms the body and the heat sink in one piece, and the enclosure is rated IP65 for dust and driven rain. Input is AC 100-240V at 50Hz with a power factor of 0.95 or higher, so it sits on an ordinary mains circuit.

The lamp measures 270 x 215 x 65 mm and the manufacturer recommends an install height of 4-6 m, which suits a first-floor wall, a warehouse eaves line or a short mast. Common uses are security and perimeter lighting, yard and workshop lighting, and floodlighting a building face. The manufacturer's stated warranty is 3 years.

Specifications

• Power: 100W
• LED chip: 3030 LED, 100 pieces
• Colour temperature: 3000K-6000K
• Efficacy: 160 lm/W
• Colour rendering index: above 70Ra
• LED life span: 50,000 hours
• Input voltage: AC 100-240V, 50Hz
• IP rating: IP65
• Power factor: 0.95 or higher
• Material: die-cast aluminium
• Lamp size: 270 x 215 x 65 mm
• Recommended install height: 4-6 m
• Warranty: manufacturer's stated warranty of 3 years
