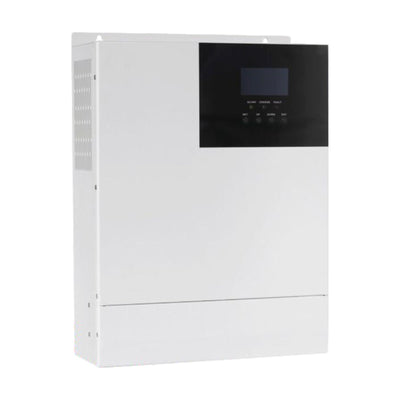

STS50248 5000W All-In-One Solar Charge Inverter 48V
Supplied 0 per carton
Tell us your quantities and delivery point and we will come back with landed pricing. Your product carries over to the quote form.
We have not published a price for this option yet. Tell us the quantity you need and we will come back with one. Your product carries over to the quote form.
About this product
Top of the all-in-one STS range, the STS50248 combines a 5000W pure sine wave inverter, an MPPT solar charger and a mains charger for use with a 48V battery bank. It is the unit installers reach for on farms, larger homes and commercial premises where pumps and refrigeration have to keep running through outages.
Peak power is 10000VA against the 5000W rating, with a stated load motor capability of 4HP. Output is 230V AC, pure sine wave, held within 0.3Hz of 50Hz or 60Hz, and AC-mode efficiency is quoted above 95%. Battery input is 48V with a 44V minimum starting voltage. Charging is the practical differentiator here: the MPPT input takes up to 4400W of PV array, while mains charging runs at up to 80A, so a 48V bank can be recovered from sun, utility or generator.
PV open-circuit voltage must remain below 145V DC, with MPPT tracking from 60 to 115V DC and a PV operating range of 60 to 145V DC. Two mains input windows are specified: 170 to 280V AC within 2% in UPS mains mode, and a wider 90 to 280V AC within 2% in APL generator mode, which matters on sites running an unstable generator. The enclosure measures 426 x 322 x 124mm.
Specifications
- Type: 5000W all-in-one solar charge inverter
- Rated power: 5000W
- Peak power: 10000VA
- Rated output voltage: 230V AC
- Output voltage waveform: pure sine wave
- Output frequency range: 50Hz plus or minus 0.3Hz / 60Hz plus or minus 0.3Hz
- Load motor capability: 4HP
- Efficiency in AC mode: greater than 95%
- Rated battery input voltage: 48V, minimum starting voltage 44V
- Charging mode: MPPT
- Maximum PV open-circuit voltage: 145V DC
- MPPT tracking voltage range: 60 to 115V DC
- PV operating voltage range: 60 to 145V DC
- Maximum PV input power: 4400W
- Maximum mains charging current: 80A
- Rated input voltage: 220/230V AC
- Input voltage range: UPS mains mode 170 to 280V AC plus or minus 2%; APL generator mode 90 to 280V AC plus or minus 2%
- Input frequency: 50Hz / 60Hz, automatic detection
- Product size: 426 x 322 x 124mm
- Manufacturer's stated warranty: 3 years
